Production specifications: Nominal production: 500 m/min
| Akyurek 500 filter maker |
min |
max |
Standard format/parameters |
| Filter diameter |
5.0 |
9.0 |
7,7 |
| Filter length |
60 |
150 |
108 |
| Rolling bobbin inner Diameter |
|
|
120 |
| Rolling bobbin outer Diameter |
|
800 |
600 |
| Rolling bobbin width |
17 |
30 |
26 |
| Filter length tolerance |
|
|
+/- 0,5 |
| Filter diameter tolerance |
|
|
+/- 0,04 |
| Ovality |
|
|
Less 0,3 |
| Inclined cut |
|
|
Less 0,2 |
| Hardness |
|
|
+/-6% |
| Seam glue nozzle |
|
|
Hot melt |
| Inner glue nozzle |
|
|
PVA |
| Inner glue nozzle |
|
|
Hot Melt |

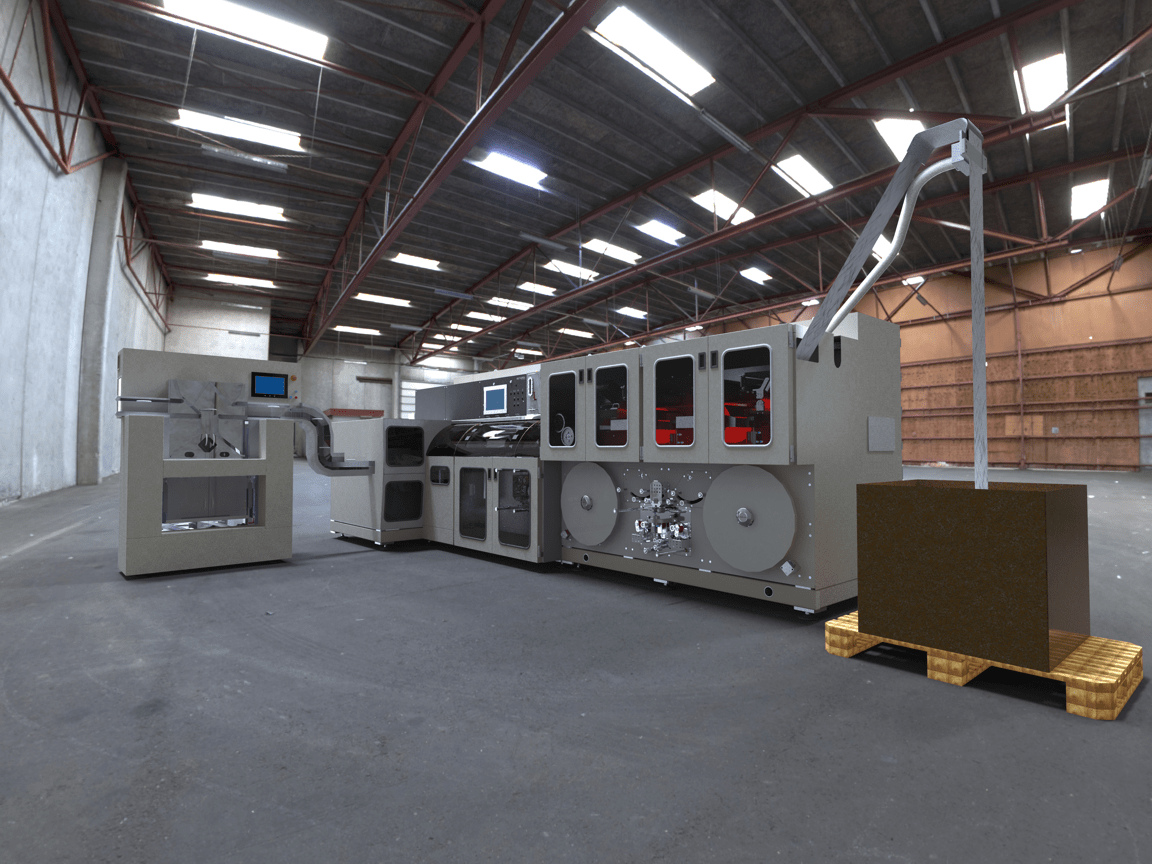

A complete production line for monoacetate filter rods includes the following main units:
- Acetate Processing Module
- Filter Rod Maker
- Filter Quality Control & Transfer Unit
- Automated Filter Tray Loader
Machine Footprint: 6000 x 4000 mm
Electrical Input: 400V 3-phase L1, L2, L3, N, PE
Air Flow Requirement: 150 m³/h
Noise Level: 80 dB(A) (measured 500 mm from guard)
Machine Color: RAL 9001 with RAL 2009 for danger zones
Supported Languages: English, Spanish, Turkish
Compressed Air Supply: 6 bar, 450 l/min – High purity required
- Residual Dust: 0.1 µm / 0.1 mg/m³
- Residual Water: PSD 3 / 0.1 mg/m³
- Residual Oil: 0.1 mg/m³
Included in Delivery:
- Full tool kit for operation and maintenance
- Precision calibration tools
- Laser-based diameter measurement and auto-adjust system
Filter Tray Loader Control Unit:
- Omron Sysmac servo control
- Dual-core NJ5 CPU with 8-axis control
- 10” HMI NA Sysmac display
- EtherCAT, EtherNET/IP connectivity
Filter Rod Maker Control Unit:
- Omron Sysmac servo control
- Quad-core NX7 CPU with 128-axis control
- 15” main operator display
- EtherCAT, EtherNET/IP protocol support
M1F – Acetate Processing Module
- Monoacetate processing speed up to 500 m/min
- Blowers with frequency inverters
- High-precision acetine dosing unit
- DC static elimination system
- Servo-controlled drum motion
- Centralized automatic pneumatic control
M2F – Filter Rod Maker Module
- Single-position rod cutting
- Steel blade cutting system with auto-advance sharpening
- Servo-driven dual bobbin unwinders
- Ultrasonic splice detection
- Centralized cooling with efficient chillers
- Lubrication system with independent flow control
- Servo-controlled bobbin holder and fine alignment
- Splice detection on bobbins
- Dual scraper system
- High-speed paper splicing
- Hot melt side gluing system
- PVA and hot melt internal gluing system
- Dual-chiller temperature management
- Auto speed adjustment and production tracking
- Main control panel and HMI
- Servo-driven garniture tape
- Garniture belt: 22x3540
- Dynamic belt tension control
M3F – Filter Quality Control & Transfer Device
- DC static discharge
- Dry and wet reject sampling
- Start/stop reject drum
- Universal tray loader interface
M4F – Automatic Filter Tray Loader
- Fully automated tray loading
- Integrated control panel
- Compatible with standard filter trays
- Standard carton box filter loading option
- Dynamic aligner with force control, 10-empty tray buffer, 12-full tray buffer
- Fully adjustable lift-up discharge system
